Description
Blood chemistry

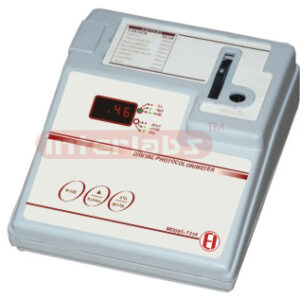

Photo Colorimeters
FEATURES Stable, direct readout of absorbance Compact & easy to operate Rugged, sturdy & reliable Thumb wheel selection of filters Pre – focused light source long life photo diode detector 1 ml sample size NOTE: Battery Mains Operated Colorimeters Also Available.
Product Overview
Specifications MODEL 313 WAVE LENGTH RANGE 400 to 700 nm RESOLUTION 0.01 ABSORBANCE 0 – 1.99A PHOTO DETECTOR Silicon Photodiode / Photo Cell DISPLAY 2½ digit LED LIGHT SOURCE 6.8V, 0.3Amp. Tungsten lamp SAMPLE SYSTEM 10mm path length matched glass test tubes HIGH STD. GLASS FILTERS 8 (Model 312), 5 (Model 313) 8 Filters : 400, 420, 480, 500, 520, 540, 620, 680nm 5 Filters :420, 480, 540, 620, 680nm WEIGHT 2.5 Kg.
Technical Specifications
| MODEL | 313 |
|---|---|
| WAVE LENGTH RANGE | 400 to 700 nm |
| RESOLUTION | 0.01 |
| ABSORBANCE | 0 – 1.99A |
| PHOTO DETECTOR | Silicon Photodiode / Photo Cell |
| DISPLAY | 2½ digit LED |
| LIGHT SOURCE | 6.8V, 0.3Amp. Tungsten lamp |
| SAMPLE SYSTEM | 10mm path length matched glass test tubes |
| HIGH STD. GLASS FILTERS | 8 (Model 312), 5 (Model 313) |
| 8 Filters | : 400, 420, 480, 500, 520, 540, 620, 680nm |
| 5 Filters | :420, 480, 540, 620, 680nm |
| WEIGHT | 2.5 Kg. (Approx.) |
| POWER SUPPLY | 230V AC ±10%, 50Hz. with in-built Stabilizer |
| ACCESSORIES | Test Tube Set of 5, spare Light Source, Dust Cover, Instruction Manual. |
Features and Details
- Stable, direct readout of absorbance
- Compact & easy to operate
- Rugged, sturdy & reliable
- Thumb wheel selection of filters
- Pre – focused light source
- long life photo diode detector
- 1 ml sample size
