Description
Blood chemistry

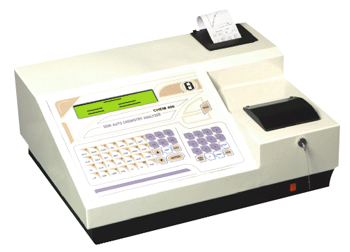

Semi Auto Chemistry Analyser
Semi Auto Chemistry Analyser Compact, Reliable, High Performance Instrument for Biochemical Tests, Enzymes, Hormones, Plasma Proteins, TDAs, Electroytes FEATURES 100 Open Tests 40 x 4 line LCD Display Graphical Thermal Printer 28 Quick Access Test Keys 18µL Flow cell Volume Peltier Controlled Thermostat User Friendly Software Auto lamp Shut Off Programmable Air Gap Aspiration Repeat Measurement of Sample in Flow cell Applications Highly useful for blood analysis Biochemistry measurements in…
Product Overview
Specifications Optical System LIGHT SOURCE 6V 10W , Halogen Lamp SPECTRAL FIELD 340 to 700 nm FILTER CHANGE Automatic Stepper motor Driven FILTERS 340, 405, 505, 546, 578, 630, 670nm + provision for the user defined filter DETECTOR Silicon photo diode Thermostat HEATING ELEMENTS Refrigerating and heating Peltier cell TEMPERATURE 25ºC, 30ºC, 37ºC Selectable Flow System FLOWCELL 18ul capacity flow through cell TYPICAL WORKING VOL. 500ul MINIMUM WORKING VOL. 350ul INTAKE Peristaltic pump with programmable intake volume CUVETTE OPTION Available for micro & macro cuvettes Measuring System MEASURING RANGE 0 to 2.500 Abs PHOTOMETRIC LINEARITY ±1% from 0 to 2.000 Abs PHOTOMETRIC ACCURACY ±0.005 Abs.
Technical Specifications
| LIGHT SOURCE | 6V 10W , Halogen Lamp |
|---|---|
| SPECTRAL FIELD | 340 to 700 nm |
| FILTER CHANGE | Automatic Stepper motor Driven |
| FILTERS | 340, 405, 505, 546, 578, 630, 670nm + provision for the user defined filter |
| DETECTOR | Silicon photo diode |
| HEATING ELEMENTS | Refrigerating and heating Peltier cell |
| TEMPERATURE | 25ºC, 30ºC, 37ºC Selectable |
| FLOWCELL | 18ul capacity flow through cell |
| TYPICAL WORKING VOL. | 500ul |
| MINIMUM WORKING VOL. | 350ul |
| INTAKE | Peristaltic pump with programmable intake volume |
| CUVETTE OPTION | Available for micro & macro cuvettes |
| MEASURING RANGE | 0 to 2.500 Abs |
| PHOTOMETRIC LINEARITY | ±1% from 0 to 2.000 Abs |
| PHOTOMETRIC ACCURACY | ±0.005 Abs. from 0 to 0.500 Abs ± 1.0% from 0.501 to 2.500 Abs |
| WASH FUNCTION | Programmable volume |
| MEASURING METHOD | End Point, Differential, Kinetic, Fixed Time, Multistandard, Aborbance modes (Mono or Bichromatic), Coagulation. |
| CALIBRATION | Automatic against standard |
| ZERO ABS | Automatically set |
| QUICK TEST KEYS | 28 quick test keys, defining the most commonly used tests. |
| DISPLAY | 40×4 character back illuminated alphanumeric LCD. |
| THERMAL PRINTER | Built in high resolution 2” thermal printer with graphics capability |
| EXTERNAL PRINTER | Hardware Ready |
| MEMORY CAPACITY | 100 test programs ( All open) |
| SERIAL OUTPUT | RS 232 Standard |
| SIZE | 470L X 365D X 85H mm (approx.) |
| WEIGHT | 11 Kg. (approx.) |
Features and Details
- 100 Open Tests
- 40 x 4 line LCD Display
- Graphical Thermal Printer
- 28 Quick Access Test Keys
- 18µL Flow cell Volume
- Peltier Controlled Thermostat
- User Friendly Software
- Auto lamp Shut Off
- Programmable Air Gap Aspiration
- Repeat Measurement of Sample in Flow cell
- Highly useful for blood analysis
- Biochemistry measurements in hospital and clinical labs.
About Interlabs
Interlabs, associated with International Biological Laboratories, supplies scientific, laboratory, educational and engineering equipment from India. The company identifies its history as dating to 1958. Contact Interlabs to confirm product details and supporting documentation for your requirement.
Request Product Information
Share your application and technical requirements for Semi Auto Chemistry Analyser to discuss suitability, available configurations and a quotation.
Frequently Asked Questions
What is Semi Auto Chemistry Analyser used for?
Semi Auto Chemistry Analyser Compact, Reliable, High Performance Instrument for Biochemical Tests, Enzymes, Hormones, Plasma Proteins, TDAs, Electroytes FEATURES 100 Open Tests 40 x 4 line LCD Display Graphical Thermal Printer 28 Quick Access Test Keys 18µL Flow cell Volume Peltier Controlled Thermostat User Friendly Software Auto lamp Shut Off Programmable Air Gap Aspiration Repeat Measurement of Sample in Flow cell Applications Highly useful for blood analysis Biochemistry measurements in…
What should I confirm before ordering Semi Auto Chemistry Analyser?
Confirm the intended application, technical specifications, available configuration, accessories, documentation and delivery requirements with Interlabs.
