Description
Blood chemistry

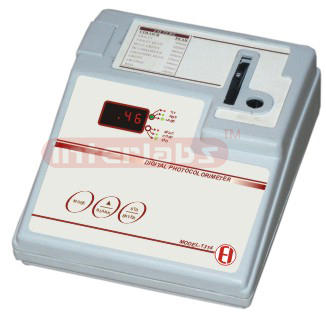

DIGITAL Colorimeter
A Versatile, Rugged, Accurate & Easy to Operate Clinical Instrument for Blood & Chemical Analysis FEATURES %T, Abs., Conc and KFactor Modes Range 400 to 700 nm Auto Zeroing Facility Broad Spectrum LED Covering Full Visible Range Sample volume 1ml Soft Touch Membrane Keys Applications FOR DETERMINATION OF CONCENTRATION OF CONSTITUENTS IN Clinical, pharmaceutical, food Beverage & water analysis Analytical and agricultural chemistry Metallurgy Blood Specifications WAVE LENGTH RANGE 400 to 700…
Product Overview
POWER SUPPLY 230V AC ±10%, 50Hz. with in-built Stabilizer ACCESSORIES Test Tubes/Cuvette: Set of 5 each, Operation Manual, Dust Cover
Technical Specifications
| WAVE LENGTH RANGE | 400 to 700 nm |
|---|---|
| MEASURING MODES | %Transmission, Absorbance, Concentration and KFactor |
| RESOLUTION | Absorbance: 0.01, %T: 0.1/1, Concentration: 0.1, KFactor: 0.1 Selectable |
| PHOTO DETECTOR | Silicon Photodiode / Photo Cell |
| DISPLAY | 3 Digit Bright Red 7 segment LED display |
| KEYBOARD | 3 Keys, soft touch membrane type |
| AUTO ZEROING | Available (for Abs.) and 100% for %T |
| LIGHT SOURCE | Broad spectrum LED covering the full visible range |
| SOLUTION VOLUME | 1ml (Minimum) |
| SAMPLE SYSTEM | 10mm path length glass test tubes & cuvette |
| PEAK WAVELENGTH FILTERS | 8 filters mounted on turret (450, 470, 510, 520, 540, 570, 600, 670 nm) |
| SHUTTER | Provided to prevent detector from continuous exposure to light |
| WEIGHT | 2.5 Kg.Approx. |
| POWER SUPPLY | 230V AC ±10%, 50Hz. with in-built Stabilizer |
| ACCESSORIES | Test Tubes/Cuvette: Set of 5 each, Operation Manual, Dust Cover |
Features and Details
- %T, Abs., Conc and KFactor Modes
- Range 400 to 700 nm
- Auto Zeroing Facility
- Broad Spectrum LED Covering Full Visible Range
- Sample volume 1ml
- Soft Touch Membrane Keys
- Clinical, pharmaceutical, food
- Beverage & water analysis
- Analytical and agricultural chemistry
- Metallurgy
- Blood
