Description
Blood chemistry

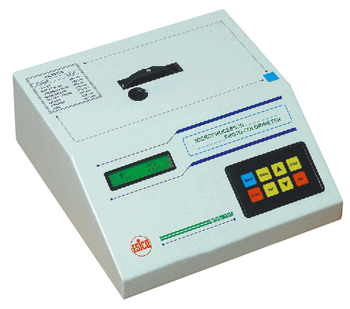

Microprocessor Photo Colorimeter
A Versatile, Rugged, Accurate & Easy to Operate Clinical Instrument for Blood & Chemical Analysis FEATURES Highly Accurate & Stable Range 400 to 700 nm 16 X 2 Line Alphanumeric LCD Display Printer Attachment Facility Storage For 100 Samples Soft Touch Membrane Keys Applications FOR DETERMINATION OF CONCENTRATION OF CONSTITUENTS IN Clinical, pharmaceutical, food Beverage & water analysis Analytical and agricultural chemistry Metallurgy Blood Specification WAVE LENGTH RANGE 400 to 700 nm…
Product Overview
Tungsten lamp SAMPLE SYSTEM 10mm path length matched glass test tubes FILTERS 400, 420, 480, 500, 520, 540, 620, 680nm PRINTER INTERFACE Centronics parallel Printer interface for any dot matrix printer RS232 INTERFACE Available (On Request) WEIGHT 2.5 Kg. POWER SUPPLY 230V AC ±10%, 50Hz. with in-built Stabilizer ACCESSORIES Matched Test Tube Set of 5, Operation Manual, Dust Cover, Spare Lamp
Technical Specifications
| WAVE LENGTH RANGE | 400 to 700 nm |
|---|---|
| RESOLUTION | 1%T, 0.01Abs., 0.01 Conc., 0.01 K Factor |
| %TRANSMISSION | 0 – 100% T |
| ABSORBANCE | 0 – 1.99A |
| CONCENTRATION | 0 – 19999 |
| K FACTOR | 1 – 19999 |
| PHOTO DETECTOR | Silicon Photodiode / Photo Cell |
| DISPLAY | 16×2 line alphanumeric LCD display with backlit |
| KEYBOARD | 8 Keys, soft touch membrane keys |
| DATA STORAGE | Up to 100 Samples |
| LIGHT SOURCE | 6.8V, 0.3Amp. Tungsten lamp |
| SAMPLE SYSTEM | 10mm path length matched glass test tubes |
| FILTERS | 400, 420, 480, 500, 520, 540, 620, 680nm |
| PRINTER INTERFACE | Centronics parallel Printer interface for any dot matrix printer |
| RS232 INTERFACE | Available (On Request) |
| WEIGHT | 2.5 Kg. |
| POWER SUPPLY | 230V AC ±10%, 50Hz. with in-built Stabilizer |
| ACCESSORIES | Matched Test Tube Set of 5, Operation Manual, Dust Cover, Spare Lamp |
Features and Details
- Highly Accurate & Stable
- Range 400 to 700 nm
- 16 X 2 Line Alphanumeric LCD Display
- Printer Attachment Facility
- Storage For 100 Samples
- Soft Touch Membrane Keys
- Clinical, pharmaceutical, food
- Beverage & water analysis
- Analytical and agricultural chemistry
- Metallurgy
- Blood
