Description
Electro chemistry

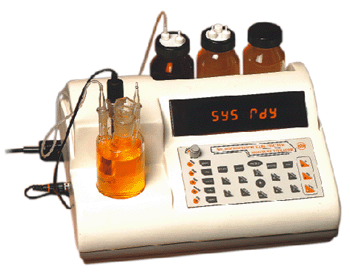

Microprocessor KF Moisture Titrator
FEATURES Auto Computation of Moisture in ppm, % & mg H2O.
Product Overview
Storage of Date, Time, Batch No. and Final Results 8 Digit Digital Display. Motorized Dispensing External Printer Attachment Facility.
Technical Specifications
| MEASURING RANGE | 10 ppm to 100% of moisture |
|---|---|
| MEASURING METHOD | Karl Fischer volumetric titration method |
| K.F. DISPENSING | Highly sensitive motorized dispensing system |
| RESOLUTION OF TITRANT VOLUME | 0.01 ml |
| INDICATION OF TITRANT VOLUME | 0.00 to 99.99 ml on display |
| MOISTURE CONTENT CALCULATION (AUTOMATIC) | % age : (0.00 to 100%) ppm : (10 to 999999) mg H2O : (0.00 to 999.99) |
| KF FACTOR | In built automatic KF Titer Factor calculation facility |
| END POINT ALARM | Visual LED and Audible Alarm |
| WAIT TIME FOR END POINT ALARM | Adjustable (1 to 59 second) |
| DISPENSING PUMP CALIBRATION | Available through keyboard |
| KEYBORD | 24 keys soft touch, membrane type |
| SAMPLE STORAGE | Upto 20 latest samples using FIFO memory |
| DISPLAY | 8 digit bright red, seven segment LED display |
| CLOCK | In-built clock with date and time display |
| STIRRER | In- built magnetic stirrer with adjustable speed |
| REAGENT BOTTLES | 3 X 250 ml bottles for KF Reagent, acetone & Calcium Chloride |
| PRINTER INTERFACE | External Dot-matrix Printer interface available |
| POWER | 230 V AC ±10%, 50 Hz |
| DIMENSIONS | L 360 X B 295 X H 175 mm (Approx.) |
| STANDARD ACCESSORIES | *Dual Platinum Electrode *Titration Vessel *Built-in Magnetic Stirrer *Teflon Coated Magnetic Stirring Capsule *250ml Bottle for acetone *250ml Reservoir Bottle for KF Solution *25µl Syringe *250ml Bottle for Calcium Chloride *Adaptor for KF Reservoir *Adaptor for acetone Reservoir Bottle *Set of Dispenser Tubes *Set of Connecting Tubes *Main Lead *Instruction Manual. |
Features and Details
- Auto Computation of Moisture in ppm, % & mg H2O.
- Storage of Date, Time, Batch No. and Final Results
- 8 Digit Digital Display.
- Motorized Dispensing
- External Printer Attachment Facility.
- Microprocessor based technology.
About Interlabs
Interlabs, associated with International Biological Laboratories, supplies scientific, laboratory, educational and engineering equipment from India. The company identifies its history as dating to 1958. Contact Interlabs to confirm product details and supporting documentation for your requirement.
Request Product Information
Share your application and technical requirements for Microprocessor KF Moisture Titrator to discuss suitability, available configurations and a quotation.
Frequently Asked Questions
What is Microprocessor KF Moisture Titrator used for?
FEATURES Auto Computation of Moisture in ppm, % & mg H2O.
What should I confirm before ordering Microprocessor KF Moisture Titrator?
Confirm the intended application, technical specifications, available configuration, accessories, documentation and delivery requirements with Interlabs.
