Description
Digital Instruments

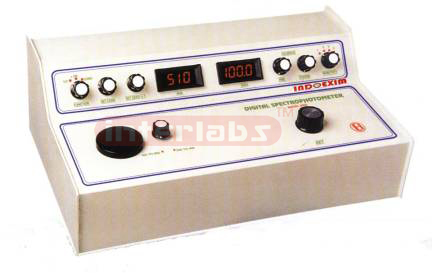

SPECTROPHOTOMETER
Digital spectrophotometer ranges 340 to 960 nm with facility for automatic concentration, % transmission & O.D.
Product Overview
measurement. Wavelength resolution 5nm. 3 ?
Technical Specifications
| Range | 340 to 960 nm |
|---|---|
| Resolution | 0.1% T:, Abs. : 0.001 |
| Output | %T: 0 to 100%, Abs: 0 to 1.999, Conc: 0 to 1999 |
| Detector | Silicon Photodiode |
| Light Source | 6V, 1Amp. Vertical Tungsten Halogen Lamp |
| Monochromator | 600 Lines/mm grating |
| Path Length | 10 mm |
| Spectral Bandwidth | 10 mm |
| WavelengthResolution | 5 nm |
| Wavelength Accuracy | 2.5 nm |
| Repeatability | 2 nm |
| Recorder Output | Available |
| Display | 3 ? Digit Bright Red LED Display |
| Operating Temp. Range | 5 to 45 degree c |
| Power | 230V +_ 10% AC, 50 Hz |
| Dimensions | 490 x 300 x 165 mm |
| Weight | 8.5 kg |
About Interlabs
Interlabs, associated with International Biological Laboratories, supplies scientific, laboratory, educational and engineering equipment from India. The company identifies its history as dating to 1958. Contact Interlabs to confirm product details and supporting documentation for your requirement.
Request Product Information
Share your application and technical requirements for SPECTROPHOTOMETER to discuss suitability, available configurations and a quotation.
Frequently Asked Questions
What is SPECTROPHOTOMETER used for?
Digital spectrophotometer ranges 340 to 960 nm with facility for automatic concentration, % transmission & O.D.
What should I confirm before ordering SPECTROPHOTOMETER?
Confirm the intended application, technical specifications, available configuration, accessories, documentation and delivery requirements with Interlabs.
