Description
Chemistry Education Appliances

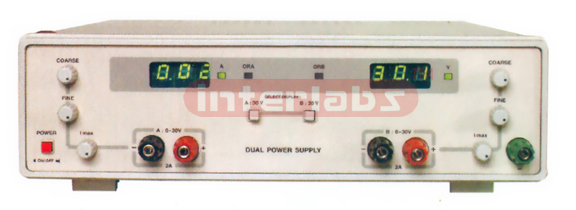

POWER SUPPLY, OUAL, 30V/2A, WITH AUTOMATIC OVERLOAD PROTECTION
TECHNICAL SPECIFICATIONS DC Output : 2×0-30V, 1A, continuously variable by means of coarse & fine controls, Current Limit : 100mA-2A continuously adjustable for 0-30V & 5V) 100mA – 1A continuously adjustable for ?5V, Resolution : Voltage – 10mV; Current – 2mA, Internal Resistance ≤15m , Stability – 2.5mV at 30V/2A, Recovery Time – ≤ 50s, Load Regulation – ≤ 0.05% ?
Product Overview
10mV, Line Regulation – ≤ 0.05% ? 10mV, Temp Coefficient – ≤0.05% + 5mV/?C, Ripple & Noise – ≤1mV rms, Display – . 3 digit for voltage & 3 digit for current, LED indication for voltage & current, Accuracy – ?(1%+1digit), General Information – Both outputs are floating.
About Interlabs
Interlabs, associated with International Biological Laboratories, supplies scientific, laboratory, educational and engineering equipment from India. The company identifies its history as dating to 1958. Contact Interlabs to confirm product details and supporting documentation for your requirement.
Request Product Information
Share your application and technical requirements for POWER SUPPLY, OUAL, 30V/2A, WITH AUTOMATIC OVERLOAD PROTECTION to discuss suitability, available configurations and a quotation.
Frequently Asked Questions
What is POWER SUPPLY, OUAL, 30V/2A, WITH AUTOMATIC OVERLOAD PROTECTION used for?
TECHNICAL SPECIFICATIONS DC Output : 2×0-30V, 1A, continuously variable by means of coarse & fine controls, Current Limit : 100mA-2A continuously adjustable for 0-30V & 5V) 100mA – 1A continuously adjustable for ?5V, Resolution : Voltage – 10mV; Current – 2mA, Internal Resistance ≤15m , Stability – 2.5mV at 30V/2A, Recovery Time – ≤ 50s, Load Regulation – ≤ 0.05% ?
What should I confirm before ordering POWER SUPPLY, OUAL, 30V/2A, WITH AUTOMATIC OVERLOAD PROTECTION?
Confirm the intended application, technical specifications, available configuration, accessories, documentation and delivery requirements with Interlabs.
