Autoclaves

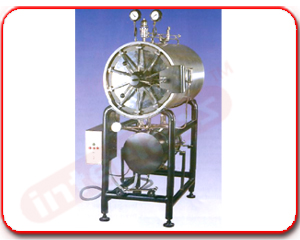

H.P. Cylindrical, Horizontal Sterilizer
Introduction The sterilizer is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through.
Product Overview
All models work on the principle of downward displacement of air which is the most economical method of obtaining sterilization. Robust and rigid construction, designed for all types of bulk sterilization which are commonly needed in Medical, Agricultural and Pharmaceutical Institutions. Suitable for Sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments, glasswares, utensils etc.
Technical Specifications
| dia × depth | load |
|---|---|
| 400 × 600 mm | 6 kw |
| 400 × 1100 mm | 9 kw |
| 500 × 900 mm | 9 kw |
| 500 × 1200 mm | 9 kw |
Features and Details
- TRIPLE SAFETY :– The Sterilizer is provided with the triple safety features. At the boiler level by a PIEZOSTAT which automatically limits the pressure to the required set value and a spring loaded safety valve in case of its failure which releases the steam to keep pressure within the safety limits. At the chamber level, a spring loaded safety valve and a dead weight release valve to release the steam in case the pressure exceeds the safety limit. All these safety features function independent of one another and sequentially i.e. one takes over the charge in case of other’s failure.
- A plug screen prevents the discharge line from choking. The plug is easily removable for daily cleaning.
- Powerful Ejector for drying sterilized linen circulates air throughout the chamber. The circulating air passes through a corrosion resistant metallic wool filter.
- A dial thermometer is provided to show the chamber temperature.
- Automatic Vacuum breaker is provided to break vacuum in case of formation of vacuum due to steam condensation.
- Pressure gauge/Compound gauge
- Water level gauge glass
- Dial thermometer
- Non return valve
- Moisture trap
- Jointless Gasket :– Neoprene/silicon rubber, size 400mm & 500mm
- Heating elements (Flange Type) Rating kw 6.0, 9.0
About Interlabs
Interlabs, associated with International Biological Laboratories, supplies scientific, laboratory, educational and engineering equipment from India. The company identifies its history as dating to 1958. Contact Interlabs to confirm product details and supporting documentation for your requirement.
Request Product Information
Share your application and technical requirements for H.P. Cylindrical, Horizontal Sterilizer to discuss suitability, available configurations and a quotation.
Frequently Asked Questions
What is H.P. Cylindrical, Horizontal Sterilizer used for?
Introduction The sterilizer is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through.
What should I confirm before ordering H.P. Cylindrical, Horizontal Sterilizer?
Confirm the intended application, technical specifications, available configuration, accessories, documentation and delivery requirements with Interlabs.
