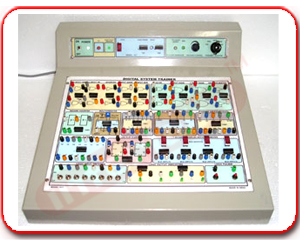

DIGITAL SYSTEM TRAINER
Lab Digital system trainer is a very versatile and completely self contained laboratory instrument built in regulated power supply This trainer consists of the following fundamental logic gates: 1.
Product Overview
LOGIC GATES: 2 INPUT AND 4 BIT BINARY FULL ADDER 2 INPUT OR RANDOM ACCESS MEMORY INVERTER MONO STABLE MULTI VIBRATOR 2 INPUT NAND DECADE COUNTER 2 INPUT NOR JK FLIP FLOP EXCLUSIVE OR TRISTATE BUFFER 3 INPUT NAND 4 INPUT NAND LOGIC INPUTS: Logic Switches: It has got 8 logic input switches for giving inputs to these logic gates. TTL Clock: TTL Clock generator is provided for giving inputs to Flip Flops. The frequency of the clock output varies from 5 Hz to 50 KHz.
Technical Specifications
| HOUSING: | It is housed in an elegant metal cabinet |
|---|---|
| DIMENSION: | 48cms x 41.5cms x 13cms |
| WEIGHT: | (Approx) 3kg |
| POWER: | 230VAC – Mains operated |
